We lay pipelines under roads, dunes and rivers without opening the ground
Trenchless drilling, tunnelling and pipeline services across the Kingdom of Saudi Arabia, with rigs from Herrenknecht, American Augers and Ditch Witch.
A specialist trenchless contractor in the Kingdom
Drilling Works Contracting Company was founded to meet the growing need for trenchless works in Saudi Arabia. We invest in current rigs and methods and employ a highly skilled workforce from the pipeline, tunnelling, drilling and piling industry.
From short utility crossings to three-kilometre bores under sand dunes, one team plans the method, prepares the pits, drills, installs the pipe and coats the joints.
About the company
ID 10065947
What we do
All services

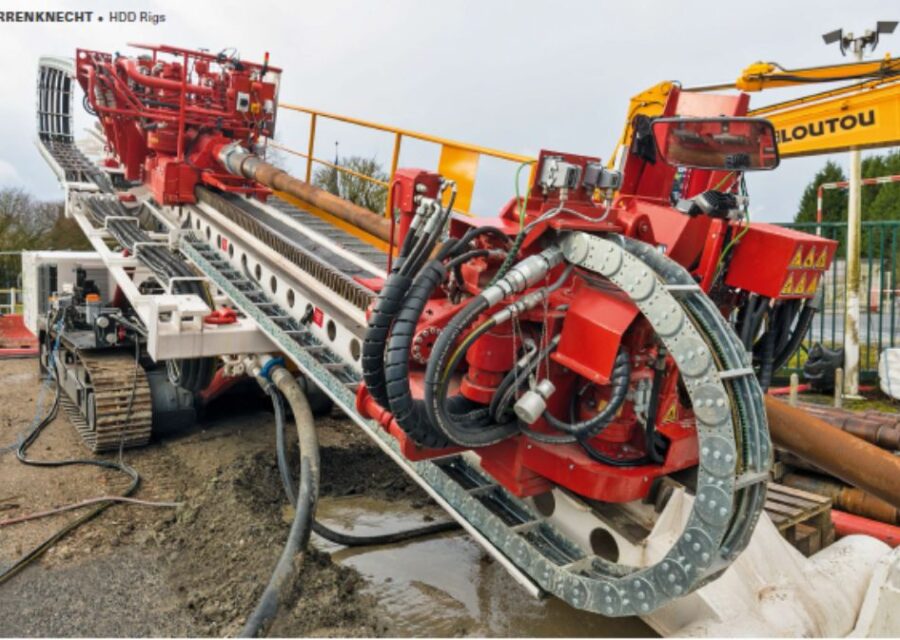

Horizontal directional drilling
Steerable bores from 20 m to 3 km for water, oil and gas lines and cable conduits, under roads, waterways and sand dunes.

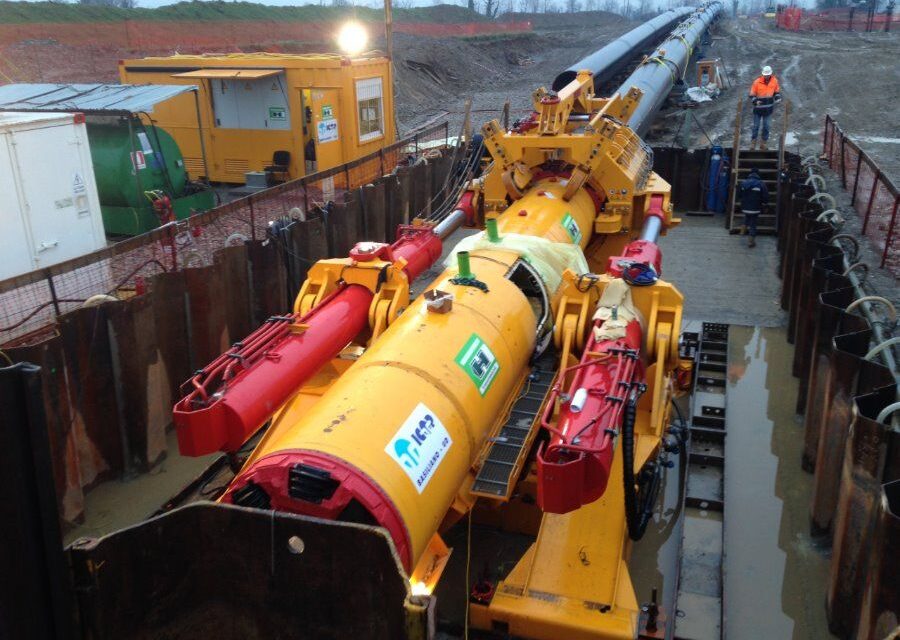

Micro tunnelling
Laser-guided tunnel boring for 1,000 to 2,800 mm pipe, holding precise gradients below the water table at up to 3 bar face pressure.

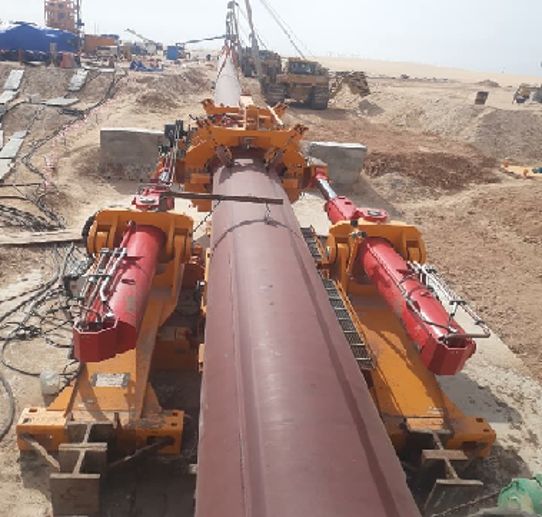

Direct Pipe
Pre-fabricated steel pipelines of 30" to 56" pushed into the ground while it is excavated, in one step, over drives of up to 1,200 m.
- Auger boring Cost-effective jacked casing crossings of 12" to 48" under railways, roads and structures.
- Vacuum excavation Exposing buried services by suction, with no mechanical contact, so cables and pipes are not damaged.
- Concrete and steel piling Sheet pile walls and bored piles for deep excavations, launch and reception pits.
- Dewatering Lowering groundwater before excavation so pits, foundations and trenches stay dry and stable.
- Vertical drilling and cathodic protection Water wells, geothermal boreholes and deep anode wells for cathodic protection. Approved by Saudi Aramco.
- Robotic field joint coating Internal and external girth weld coating for 8" to 60" pipelines, with robotic cleaning and inspection.
How far a single drive reaches
Maximum length of one continuous crossing for each method, to scale. Final length depends on ground conditions and pipe diameter.
- HDD, 250 t maxi rig 3 000 m Pipe 4" to 48"
- Direct Pipe 1 200 m Pipe 30" to 56"
- Micro tunnelling 700 m Pipe 1,000 mm to 2,800 mm ID
- Auger boring 150 m Pipe 12" to 48"
What clients can expect from us
Quality, on time and within budget
Method, pits and programme are agreed before mobilisation, and the crossing is run to them.
Competitive price
Our own rigs and experienced crews keep the cost of each crossing competitive.
Improved performance
Current trenchless technology from Herrenknecht, American Augers and Ditch Witch.
Smooth running projects
Close coordination with the client and main contractor from survey to handover.
Planning a crossing?
Send us the route, pipe size and ground data. Our engineers will recommend a method and prepare a quotation.
