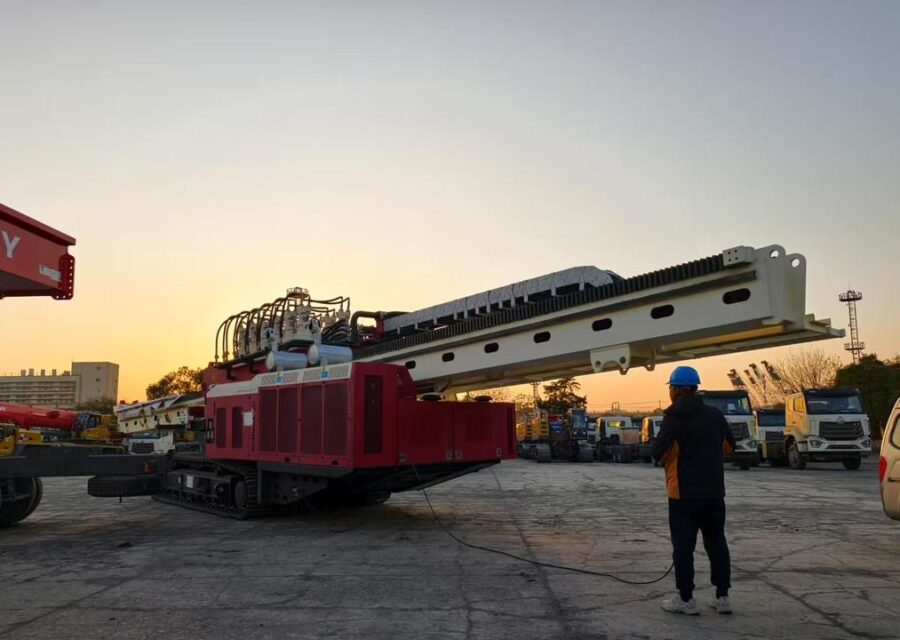

Horizontal directional drilling
Steerable bores from 20 m to 3 km for water, oil and gas lines and cable conduits, under roads, waterways and sand dunes.
- Pipe size
- 4" to 48"
- Bore length
- 20 m to 3,000 m
- Rig classes
- 20 t compact, 50 t to 250 t maxi
Services
Thrust boring and pipeline services: directional drilling, micro tunnelling, Direct Pipe, auger boring, vacuum excavation, piling, dewatering, vertical drilling and field joint coating.
Micro tunnelling
Laser-guided tunnel boring for 1,000 to 2,800 mm pipe, holding precise gradients below the water table at up to 3 bar face pressure.
- Pipe size
- 1,000 mm to 2,800 mm ID
- Drive length
- 20 m to 700+ m
- Face pressure
- Up to 3.0 bar

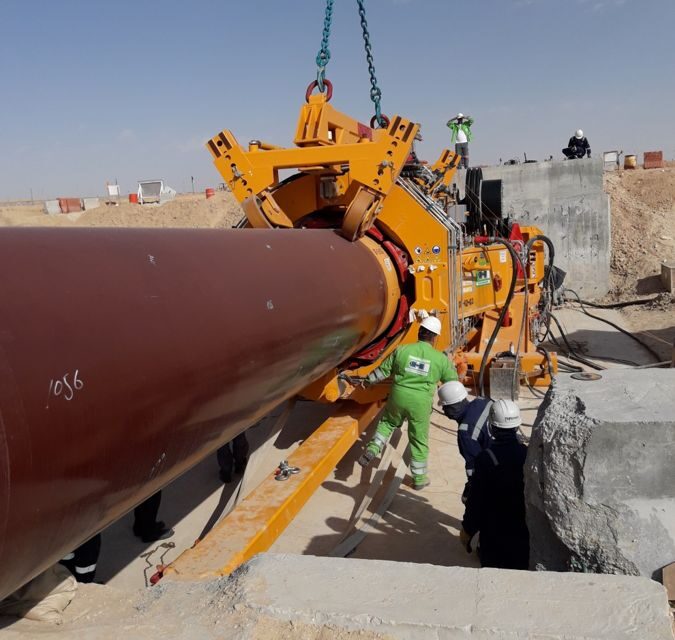

Direct Pipe
Pre-fabricated steel pipelines of 30" to 56" pushed into the ground while it is excavated, in one step, over drives of up to 1,200 m.
- Pipe size
- 30" to 56"
- Drive length
- Up to 1,200 m
- Ground
- Soft, medium and rock
Auger boring
Cost-effective jacked casing crossings of 12" to 48" under railways, roads and structures.
- Pipe size
- 12" to 48"
- Bore length
- 20 m to 150 m
- Ground
- Soft and medium
Vacuum excavation
Exposing buried services by suction, with no mechanical contact, so cables and pipes are not damaged.
- Excavation rate
- Up to 10 m³ per hour
- Material size
- Up to 250 mm
- Reach
- 45 m vertical, 125 m horizontal
Concrete and steel piling
Sheet pile walls and bored piles for deep excavations, launch and reception pits.
- Methods
- Steel sheet piling, bored concrete piles
- Installation
- Impact and vibratory hammers, piling rigs
- Use
- Shoring of deep excavations and pits
Dewatering
Lowering groundwater before excavation so pits, foundations and trenches stay dry and stable.
- Equipment
- Submersible and centrifugal pumps, eductors, well points
- Use
- Foundations, shoring, pits and cellars
Vertical drilling and cathodic protection
Water wells, geothermal boreholes and deep anode wells for cathodic protection. Approved by Saudi Aramco.
- Diameter
- Up to 16"
- Depth
- Up to 250 m
- Pullback / pulldown
- 26,500 lbf / 30,000 lbf
Robotic field joint coating
Internal and external girth weld coating for 8" to 60" pipelines, with robotic cleaning and inspection.
- Pipe size
- 8" to 60"
- Internal equipment
- 8", 10", 12–14", 16–22", 24–34", 36–46", 48–60"
- Cycle time
- 24 s FBE, 15 s liquid
Planning a crossing?
Send us the route, pipe size and ground data. Our engineers will recommend a method and prepare a quotation.
